The Duram Escape Mask is an emergency evacuation mask you can carry in your pocket, designed to provide respiratory protection as well as reduce the health risk and mortality rate associated with the inhalation of toxic air caused by fire, smoke, carbon monoxide (CO), chemical leakage or Chemical/Biological attack. Learn More

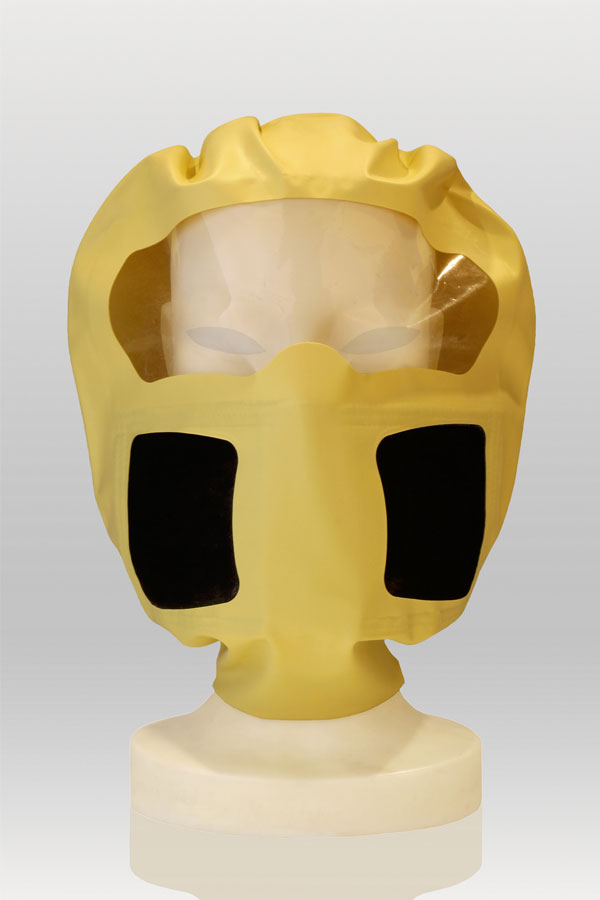

Duram Maskito

Compact Escape Mask

A personal emergency device for short-term respiratory protection during escape from situations involving hazardous and toxic air. For private homeowners, hotels, high-rises, hospitals, ships and aircraft.

The Duram Maskito is the perfect protection against smoke and gas emergency events. The Duram Maskito is easy to use and within seconds it provides full protection of the face, eyes and the respiratory system. A must have to anyone – in the car, in the workplace or at home.

Category:

Description

FEATURES

  • Pocket-size.
  • Don within seconds. No adjustment straps.
  • One size fits all.
  • Strong, fire-resistant, elastic rubber hood, protects the entire head and seals comfortably at the neck.
  • Large visor, made of flame-retardant transparent film, allows a wide field of view.
  • High-efficiency, electrostatic particle filter, with extremely low pressure-drop to allow easy breathing.
  • Layers of activated charcoal with special impregnation to absorb toxic gases.
  • Training model available.
  • Available in two colours: yellow and black.

TECHNICAL

DATA Hood:

Special Polychloroprene Latex Compound

  • Elongation at break: > 700%
  • Tensile strength: > 150 kg/cm²
  • Temperature resistance: 200°C
  • Fire-resistant to the requirements of NFPA 701

Visor:

ETFE film – a copolymer of Polytetrafluoroethylene with Ethylene monomer.

  • Tensile strength: 50N/mm²
  • Elongation at break: 450%
  • Tear resistance: 500 N/mm
  • Temperature resistance: 150°C
  • Flame retardant : UL 94 V-O
  • Light transmission: > 95%

Breathing Device:

A device combining two valves for inhalation and exhalation, all in one.

Filter Assembly:

  • Multi-Layer filter includes the following:
  • External polyester screen, fire resistant to the requirements of NFPA 701
  • Electrostatic particle filter
  • A layer of activated charcoal cloth with impregnation against acid gases
  • Soft inner pad of non-woven material

Filter Performance:

Test Gas Challenge Concentration (ppm) Flow Rate (l/min) Time to Breakthrough
Hydrogen Chloride (HCI) 1000 20 60 min at 5 ppm
Hydrogen Cyanide (HCN ) 400 20 > 40 min at 1 ppm
Nitrogen Dioxide (N02) 200 20 > 25 min at 5 ppm
Sulphur Dioxide (S02) 150 20 25 min at 5 ppm

Particle Penetration:

  • Meets EN 143 P2.
  • Pressure drop at 20 lit/min: 0.06 mbar

Storage and carrying:

  • The mask folds so that it can fit in an eyeglass case, can be carried in a pocket or handbag.
  • Approximate (package) dimensions: 13 x 6 x 2.5 cm
  • Approximate (package) weight: 130 gr.

Sectors

  • Hospitals & Nursing homes
  • Hotels
  • High-rise office / Residential developments
  • Transportation – ships, cruise liners and aircrafts
  • Security organisations

Accessories

hardcase

Cases and pouches for the storage of Duram Emergency Escape Masks.

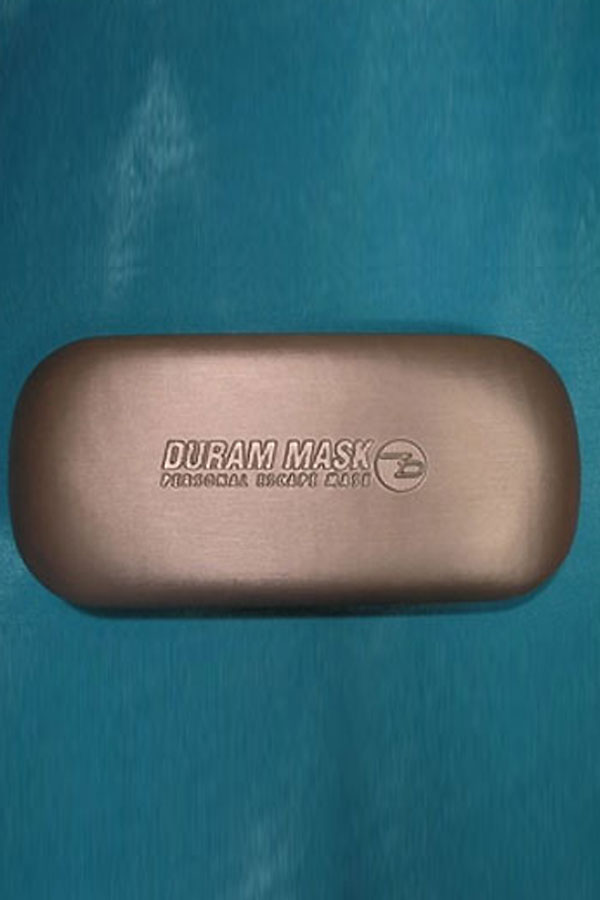

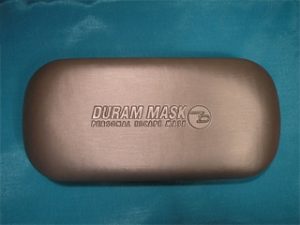

Duram Maskito – Hard Case

Mini hard case for the purse – protects the Maskito Mask and elegant.

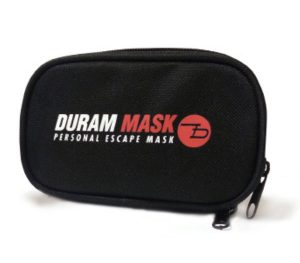

Duram-MASKITO-Mask-Pouch

Cases and pouches for the storage of Duram Emergency Escape Masks.

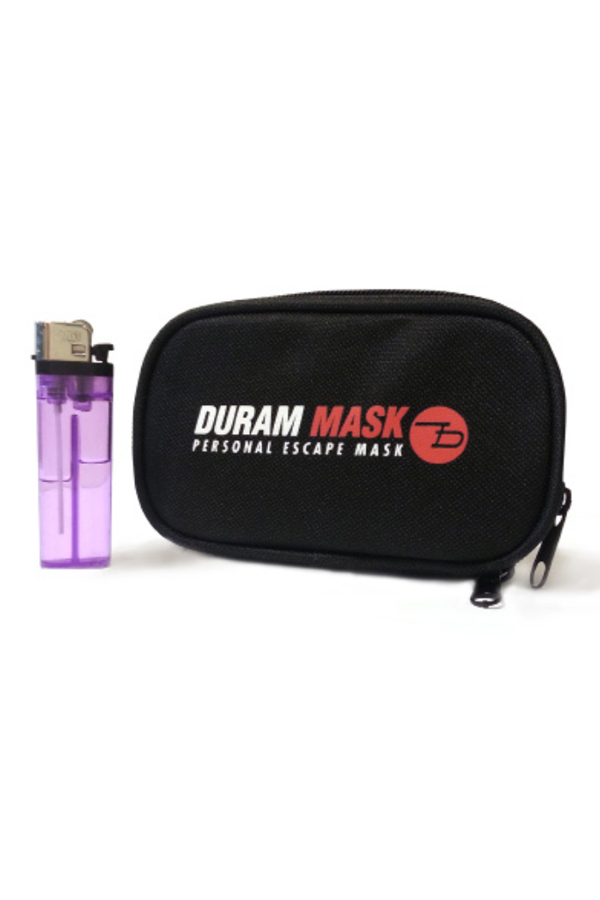

Duram Maskito – Mini Pouch

Belt-mount pouch for Duram Maskito mini mask.
